Product ID: EA-8148/EA-8224/EA-8412
8x1/2/4 Matrix Mixer Amplifier with Paging
8x1/2/4 Matrix Mixer Amplifier with Paging
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

  • Description:

◆ Rated output power: 480Wx1ch; 240Wx2ch; 120Wx4ch
◆ 4 XLR Balanced jack and 1/4” phone jack for CH1-4 input
   4 1/4” phone jack and RCA jack for CH5-8 input
◆ 8 Gain control for each input
◆ 1/2/4 channel Euro Block for output
◆ Output Level control with 2 tone control and mute switch
◆ With remote paging MIC input (RJ45 interface)
◆ Talkover switch for Ch1
◆ Phantom Power switches for CH1 and CH2-4
◆ LED indicators: Power, SIG, CLIP for each input channel and SIG,-10dB,0dB, CLIP,PROT,for each output channel

  • Specification:

Model EA-8148 EA-8224 EA-8412
Channel Quantity 1 CH 2 CH 4 CH
Rated Output Power 480Wx1CH 240Wx2CH 120Wx4CH
Output / Impedance
100V(21Ω)
70V(10.2Ω)
100V(42Ω)
70V(21Ω)
100V(83Ω)
70V(42Ω)
Input sensitivity
/Impedance
 Mic Input -50dB~ - 6dB / 20KΩ Balanced
Line Input -30dB~ + 14dB / 20KΩ Balanced
Frequency Response (±1dB) 20Hz - 20kHz
T.H.D <0.1%
Closstalk >70dB
Equalization Input High : 12 kHz ± 15 dB / Mid : 2.5 kHz ± 15 dB / Low : 80 Hz ± 15 dB
Output High : 12 kHz ± 15 dB / Low : 80 Hz ± 15 dB
S/N Ratio >90dB
Power Source AC 230 V, 50/60Hz
Net Weight 6.0Kg 6.1Kg 6.3Kg
Dimensions (W x H x D) 420 x 88 x 320mm

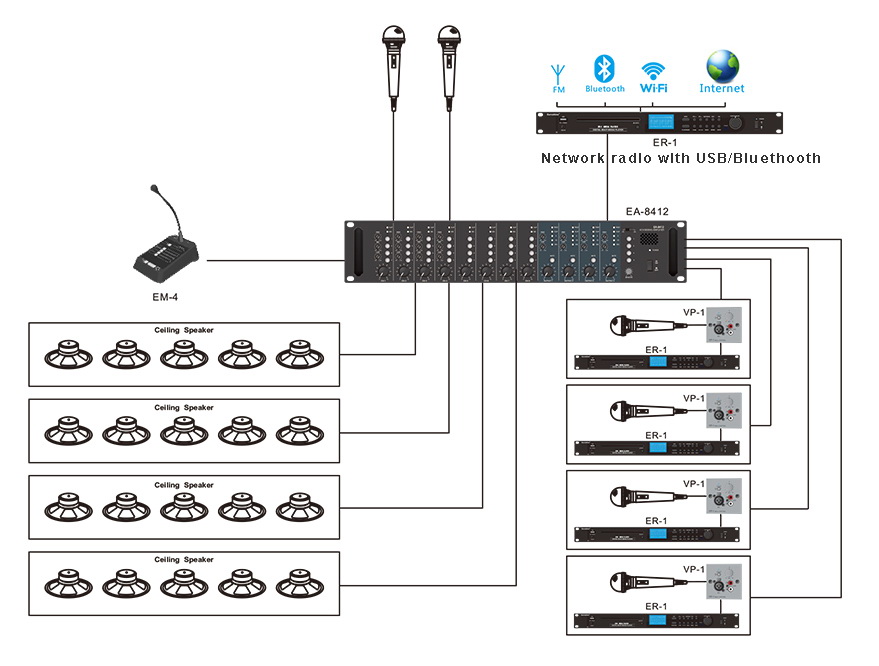

  • System connection:
system connection drawing

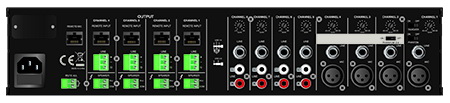

back view




Product Reviews
No Reviews For This Product.
Click to review this product
4 Zone Remote Paging Microphone (for EA-8148/EA-8224/EA-8412 & EF-804)
Product ID: EM-4
4 Zone Remote Paging Microphone (for EA-8148/EA-8224/EA-8412 & EF-804)

  • Zone selector switch, all call & individual & group call
  • Volume level control
  • RJ45 connection
Remote Wall Control Panel (for EA-8412/EA-8224/EA-8148 & EF-801/EF-802/EF-804)
Product ID: VP-1
Remote Wall Control Panel (for EA-8412/EA-8224/EA-8148 & EF-801/EF-802/EF-804)

  • Remote wall control panel for EA-8412/EA-8224/EA-8148 & EF-801/EF-802/EF-804 series
  • Volume control for singal zone audio sources
  • Power on/off switch for wall panel input or remote main set source
  • RJ 45 connector for connection with remote main set
