Product ID: EVAC-6006
EVAC Remote Paging Microphone
EVAC Remote Paging Microphone
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

  • Features

◆ Digital voice evacuation system remote paging microphone
◆ Each microphone contains 12 zone paging capacity
◆ System support 32 remote microphones by loop connection
◆ Microphone come with AC, DC, fault, Mic status and test indicators
◆ 6 inputs & mic/line selection buttons
◆ 6 zone selection button with three-colored indicators
◆ With reset/Cancel, All Call & Call button
◆ Two RJ45 ports for input and link output
◆ CAT5 or CAT6 cable communication up to 600 meters
◆ AC 230V and DC24V battery inputs
◆ Built-in monitor speaker.

  • Specification

    Model EVAC-6006
    Description Voice Alarm Remote Paging Microphone
    Power Consumption 3W
    Zone Capacity 12 Zones
    System Capacity 32 Remote microphones
    Line Inputs 350mV, 10kΩ
    Mic Input 5mV, 600Ω
    Frequency Response 80Hz~16kHz
    THD <1% at RMS,1KHz
    S/N Ratio >70dB
    Operating Temp -20℃ to +70℃
    Power Supply DC24V, ±20%
    Humidity <95% no condensation
    Dimension 256(W)×149(H)×52(D) mm
    Weight 1.5kg

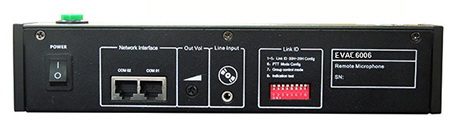

back view


Product Reviews

No Reviews For This Product.

Click to review this product

240W/500W 6 Zones Voice Evacuation System Host
Product ID: EVAC-6240/EVAC-6500

  • Built-in 240W/500W 6 zone class-D amplifier
  • 120 zone capacity with cascaded 19 units of zone extender
  • Support remote control via computer
  • Compatiable with EN54-16 standards
