◆ Extend amplifier is needed for more than 6 zones EVAC system
◆ Built-in 240W/500W 6 zone class-D amplifier
◆ Controlled by master voice alarm controller
◆ Integration of EVAC controller, paging system, PA system & BGM system together
◆ Built-in two separate players for EVAC and alert voice message by SD card
◆ Built-in 6 zone AB speaker line low impedance supervision
◆ Built-in amplifier auto changeover into standby when fault
◆ With external amplifier input to expansion the power
◆ Capacity of connection with 32 remote microphones
◆ 6 zone speaker output with separate zone volume control (ATT)
◆ 6 zone separate indicator for EVAC, fault, music/paging & select
◆ With AC, DC, fault and EVAC & alert indicators
◆ Zone capacity of 120 zones by cascaded 19 routers
◆ With 8 programmable control inputs and 8 programmable control outputs for voice evacuation system
◆ With Fault, EVAC outputs and Reset input for third party system integration
◆ Priority level: fireman microphone, EVAC, input 1, remote microphone, timer & BGM
◆ Two combo inputs for microphone/line, 4 line inputs and one REC output

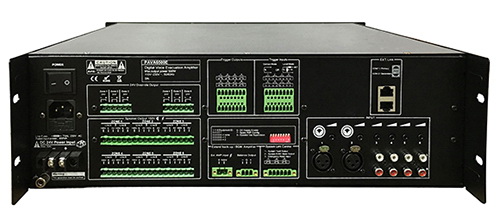

◆ Two RJ45 ports for router, two RJ45 for remote microphone input and two RJ45 for LAN/WAN/Internet network
◆ AC 230V and DC24V battery input. Auto switch into the battery backup when AC fails.
-
Specification
Model |
EVAC-6240E |
EVAC-6500E |
Description |

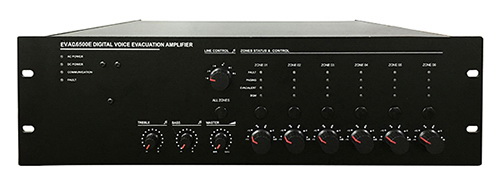

6 Zone Voice Evacuation Amplifier |
Rated Power Output |
240W |
500W |
Fireman Microphone |
5Mv, 600Ω |
Line 1-2 Inputs |
385mV, 10kΩbalanced Combo |
Line 3-6 Inputs |
350mV, 10kΩ, RCA |
Frequency Response |
80Hz~20kHz |
T.H.D |
<1% at RMS,1KHz |
S/N Ratio |
>70dB |
Speaker Output |
100V AB 8 zone speaker outputs |
REC Output |
200mV |
Control Input & Output |
8 programmable control inputs:
Max 3.3V (voltage mode) or 0V closed contact
8 programmable control outputs: 0V closed contact;
Control output for fault & EVAC: 0V closed contact;
Reset control input: 0V closed contact |
Voice Message |
MP3 or WMA format, two separate players of SD card
with protection cover, programmable voice message up
to 255, 10 years valid |
Event Record |
HEX format, Hard Flash memory, events up to 1000 records,
10 years valid |
Operation Environment |
Operation Temp: +5℃ ~ +40℃;
Store Temp: -20℃ ~ +70℃; Operation Humidity:<95% |
Power Consumption |
300W |
600W |
Power Supply |
AC230V or 115V & DC24V battery inputs, 50-60HZ |
AC Fuse |
250V/6.3A, slow type and restorable fuse |
Product Dimension |
484(W)×132(H)×449(D)mm |
Net Weight |
21Kg |
24Kg |
