Categories » Conference System » IR Wireless Simultaneous Interpretation System » 4/6/8/12 Channel Infrared Wireless Language Distribution System

 Checkout
Product ID: H-6300M

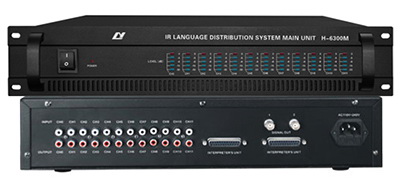

4/6/8/12 Channel Infrared Language Distribution System Main Unit
4/6/8/12 Channel Infrared Language Distribution System Main Unit
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

  • Description

    ◆ High security,prevent external interference
    ◆ Suitable for different conference hall
    ◆ Automatic level control function (ALC)
    ◆ No disturb under daylight lamp
    ◆ Easy to operate and save in project cost
    ◆ With the most advanced technology
    ◆ Elegant configuration in accordance to ergonomics
    ◆ Input channel direct function
    ◆ Has 4/6/8/12 channel interpreter's voice for recording
    ◆ Installed in a 19-in frame

  • Technical Parameter

    Item Parameter
    Modulation Mode FM
    Frenquency Synthesis Digital PLL
    Frenquency Band 1.7-4.0MHz
    Frenquency Response 100Hz-14KHz
    Frenquency Stability 10ppm
    Pre-emphasis 75μ second
    Distortion at 1KHz <0.5%
    Channel Separation >70dB
    RF Output Power Level 700mV
    RF Output Impedance 50Ω
    Input Impedance 18KΩ
    Max Input Power Level 2V
    AGC Range 30dB
    S/N Ratio >75dB
    Power Consumption 40W
    Power Supply AC110V~240V/50Hz~60Hz
    Dimension 485x355x88mm
    Net Weight 7.0Kg

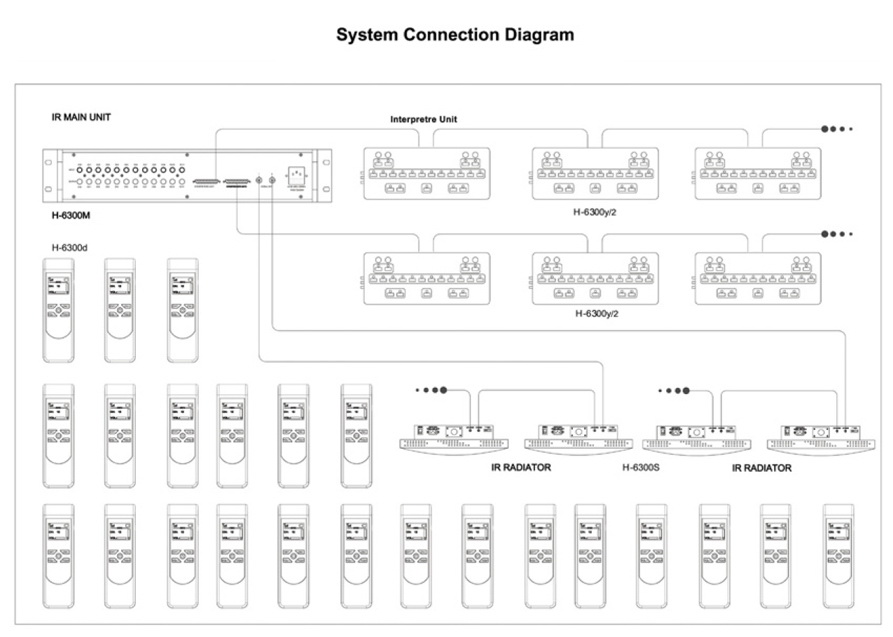

  • System Connection Diagram

    System Connection Diagram




Product Reviews

No Reviews For This Product.

Click to review this product

IR Receiver
Product ID: H-6300D

  • Accommodates up to 12 different language
  • With channel selector and headphone connector
  • Volume, channel, signal and battery power level display on LCD
IR Receiver Charge Case
Product ID: H-6300R

  • Used for charging IR receiver
  • Charges 24pcs of IR receivers per charging
IR Radiator
Product ID: H-6300S

  • Radiates & distributes up to 12 channels of audio signal
  • Auto switched on/off by carrier signals from transmitter unit
  • Mounted on ceiling, wall, floor stand or optional tripod
Interpreter Unit
Product ID: H-6300Y1

  • 12CH simultaneous interpretation
  • IR Transmitter could connect 11 interpreter's units
  • LCD can display input and output channel
Interpreter Unit
Product ID: H-6300Y2

  • 12 channel simultaneous interpretation
  • IR Transmitter could connect 11 interpreter's units
  • One interpreter's unit can be used for two interpreters in turn
