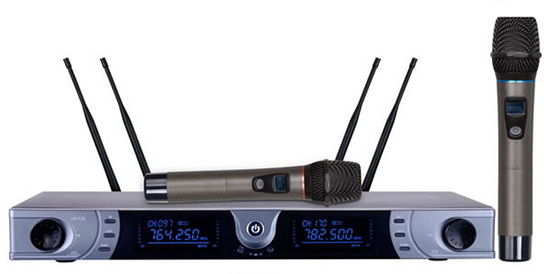

H-77B UHF True Diversity Wireless Microphone, Wireless Microphone

PA Speaker

Descripion:

◆ 2 Channel diversity receiver wireless microphone system
◆ 200 programmed, compatible UHF frequencies within the bandwith in 250KHz frequency steps
◆ Scan and ACT (automatic channel targeting) function for easy location of free frequencies at the process of a button, easy transmission to transmitter by infrared diode per channel
◆ Channel selection, setting and control is performed with a user-friendly, front-mounted jog wheel and multicolor LED display that can be ready from a wide range of angles with displays for AF level, reception quality, remainingbattery capacity, frequency, group and channel
◆ Inhibit function to protect against unintentional maladjustment

System Specification:

Receiver Parameter:

Function Principle:	True-Diversity-Receiver (UHF)
Medium Frequency:	110MHz, 107MHz
Antenna Connection:	4xBNC
Sensitivity:	12dBuV
Sensitivity Adjustment Range	12~32dBuV
Noise Rejection:	>75dB
Max Output Level:	+10dBV

Transmitter Parameter:

Antenna:	Build-in
RF Output:	<10mW
Noise Rejection:	-60dB
Transmission Range:	100m
Power Supply:	2pcs AA batteries
Battery Life:	10 hours in normal power; 12 hours in low power

Product Reviews

No Reviews For This Product.

Product ID: H-WJ1
