Main Features
◆ Infrared transmission technology guarantees privacy
◆ Perfect sound quality as CD from the microphone
◆ IR communication system eliminates the need of connecting the conference units
◆ Fully functions(Discuss, video tracking & voting), support FIFO(1,2,3),Limit(1/2/3) and chairman only mode, microphones in one system up to 128 units
◆ Microphone can be operated on either their built-in rechargeable lithium-in batteries or AC power supply. Battery life approx. 8 hours during speech and approx.30 hours when standby
◆ Microphone LCD can display system and conference information
◆ Excellent immunity to RF interference from mobile phones and RF devices
-

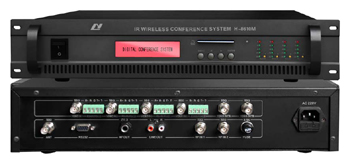

H-8510M/H-8610M Infrared Conference System Main Unit
◆ Support mode: Limit (1,2,3), FIFO(1,2,3), chairman only
◆ Build-in video processor and voting processor to support video camera auto-track and voting function
◆ 160x32 dot matrix LCD display system information
◆ Two group audio output interface to support external audio system
◆ Installation: 19-inch frame
◆ Designed accordance to UL and CE standards
◆ If main unit turn off power, microphone will shut off the power within 60 seconds
-
Technical Parameter
|
Description |
Item |
Parameter |
|
Audio channel |
Transmission Method |
Wireless infrared |
|
Audio Channel |
4 |
|
Carrier Frequency Band |
6MHz-8MHz |
|
Modulation Method |
FM |
|
Receiving Sensitivity |
-85dBM |
|
Output Level |
-10dB |
|
Infrared Operating Distance |
>10M |
|
Frenquency Response |
100Hz-10KHz |
|
S/N Ratio |
>70dB |
|
T.H.D. |
<0.5% |
|
Data control channel |
Transmission Method |
Wreless |
|
Date Channel |
5 |
|
Frenquency Range |
915MHz-925MHz |
|
Modulation Method |
FSK |
|
Receiving Sensitivity |
-80dBM |
|
Transmission Consumption |
10dBM |
|
Communication Rate |
100KBPS |
|
Signal Convering Range |
Radius 100M |
|
System |
Power Supply |
AC 110V~240V / 50Hz-60Hz |
|
Consumption Rating |
10W |
|
Operating Temperature Range |
0-40 degree |
|
Dimension (LxWxH) |
484x377x85mm |
|
Net Weight |
6.81Kg |
-
H-8510C/D, H-8610C/D Infrared Conference System Microphone
H-8510C/D, H-8610C/D
◆ Portable table moving and microphone pipe can be pull out. Extended pipe option
◆ Electric capacity type microphone, equipped with windshield cover
◆ LCD color red/blue(option)
◆ LCD display microphone ID, signal level, battery level, microphone state, control channel, etc.
◆ Equipped with microphone on/off key and indicator
◆ Equipped with 5 function keys to set microphone ID, control channel, LCD contrast and light time
◆ Auto-close: Microphone will turn off automatically if there is no action of this microphone in 99 seconds
◆ Microphone will shut off the power in 60 seconds to save battery power if system communication is error
◆ LCD will display 'IR Signal Weak' if ther IR signal is weak when microphone working. Including the functions of the delegate unit, chairman unit has other following functions:
◆ Chairman microphone can turn on any time
◆ In one system microphone just support one chairmann microphone and the ID number should be 1
◆ Priority function: chairman can turn off delegate microphone any time
◆ Chairman only mode: Delegate microphone can not be turned on again after chairman microphone press priority button. The chairman need quit this mode first, and then delegate microphone can be turned on again.
-
Technical Parameter
|
Description |
Item |
Parameter |
|
Audio channel |
Transmission Method |
Wireless infrared |
|
Audio Channel |
4 |
|
Carrier Frequency Band |
6MHz-8MHz |
|
Modulation Method |
FM |
|
Infrared Radiator Consumption |
±10dBM |
|
Mic Sensitivity |
-44dB±2dB |
|
Frenquency Response |
100Hz-10KHz |
|
S/N Ratio |
>70dB |
|
T.H.D. |
<0.5% |
|
Reference Sound Receiving |
10-30cm |
|
Data control channel |
Transmission Method |
Wreless |
|
Date Channel |
5 |
|
Frenquency Range |
915MHz-925MHz |
|
Modulation Method |
FSK |
|
Receiving Sensitivity |
-85dBM |
|
Transmission Consumption |
10dBM |
|
Communication Rate |
100KBPS |
|
System |
Battery |
LIP battery 12V/4000MAH |
|
Consumption Rating |
8W |
|
Operating Temperature Range |
0-40 degree |
|
Length of Gooseneck |
400mm (optional) |
|
Dimension (LxWxH) |
220x155x69mm |
|
Net Weight |
0.818Kg (with battery) |
-
H-8610R Infrared Conference System Receiver
◆ Adop mounting hook installation, easy to install
◆ Wide-angle, receiving range is approximately 150 degrees
◆ Signal gain more than 35dBM
◆ Adopt low consumption electro circuit
◆ Wall/ceiling installation option
-
Technical Parameter
|
Item |
Parameter |
|
Carrier Frequency Band |
6MHz-8MHz |
|
Power Supply |
DC 12V from main unit |
|
Rated Current |
25mA |
|
Receiving Sensitivity |
-85dBM |
|
Gain |
40dBM |
|
Output Impedance |
50Ω |
|
Terminal Type |
BNC |
|
Dimension |
Φ98x74mm |
|
Net Weight |
0.44Kg (with bracket) |
-
H-8610T Infrared Conference System Distributor
◆ Adopt impedance balance branch connector( 2 input, 1 output)
◆ Low insertion loss computation
◆ Perfect plating surface treatment with excellent shielded function
H-8510CG / H-8610CG
◆ Input voltage: AC110V~240V/50Hz~60Hz
◆ charges to 16pcs (H-8510CG) / 10pcs (H-8610CG) of LIP battery per charging
◆ Intelligent charging management electro circuit to protect the LIP battery
◆ Equipped with extendible handle and pulley, easy for moving
◆ If the distance between IR main unit and microphone is not far, and there does not have any obstruct, antenna can be connect to the 'ANT' interface of IR main unit rear panel directly
◆ If the distance is far or have some obstruct between them, please connect external antenna to IR main unit
H-8510B / H-8610B
◆ Excellent safety performance, light weight & high capacity ratio
◆ Improved safety: more resistant to overcharge; less charge for electrolyte leakage
◆ High capacity: have nearly double the capacity with half the weight of NiCad or NiMH battery packs
◆ Easy to install
◆ This AC power adapter can charge LIP battery directly with microphone unit
-
Technical Parameter
|
Item |
Parameter |
|
Imput Voltage |
AC110V/220V 50Hz~60Hz |
|
Output Voltage |
DC18V 600mA |
|
Dimension (LxWxH) |
98x70x55mm (only transformer) |
|
Net Weight |
0.75Kg |
-

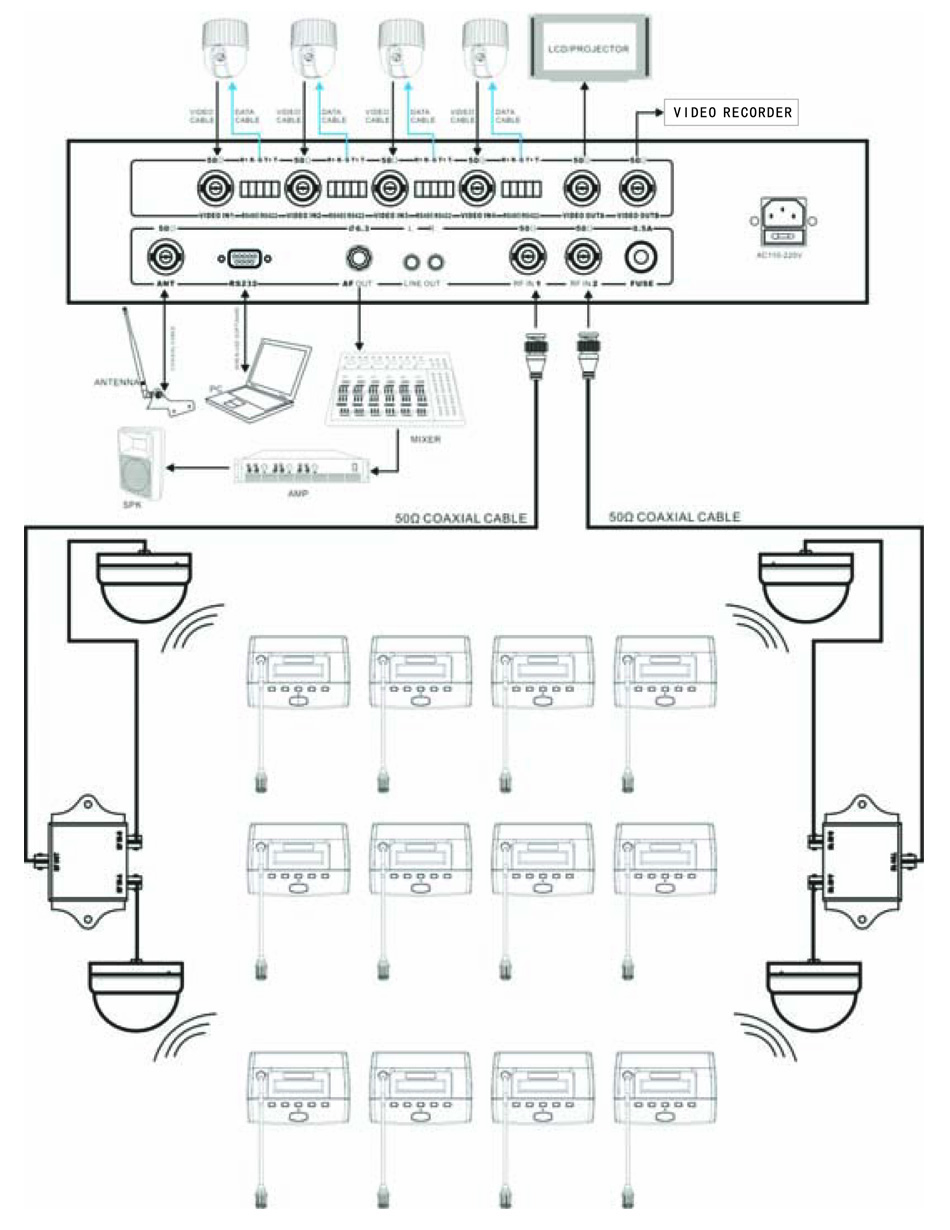

System Connection Diagram
