• Overwiew

  The infrared conference system has all the advantages of infrared communication complete with wireless transceiver microphones units. Wireless infrared technology provides the user with greater flexible whilst configuring the system and freedom of choice when playing microphones, it guarantees conference privacy and protects the system from wiretapping and radio interference. It's the best wireless conference solutions for small-scale conferences.

• Main Features

  ◆ Infrared transmission technology guarantees privacy
  ◆ Perfect sound quality as CD from the microphone
  ◆ IR communication system eliminates the need of connection the conference units. Installation can be done quick and smart without cumbersome arrangements
  ◆ Fullyfunctions (Discuss & Video tracking), support FIFO (1/2/3), Limit (1/2/3) and chairman only mode, microphones in one system up to 127 units
  ◆ Microphones can be operated on either their build-in rechargeable LI-Polymer batteries or AC power supply, battery lie approx. 6 hours during speech and approx. 30 hours when standby
  ◆ Microphone OLED can display system and conference information
  ◆ Excellent immunity to RF interference from mobile phones and RF devices

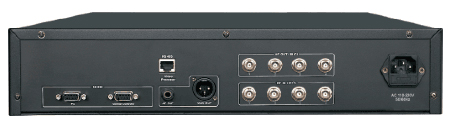

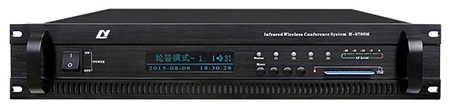

• H-8700M Infrared Conference System Main Unit

  ◆ Support mode: Limit (1/2/3), FIFO(1/2/3), chairman only
  ◆ Support video camera auto-track with video processor H-8008
  ◆ 160x32 dot matrix LCD display system information
  ◆ Two group audio output interface to support external audio system
  ◆ Installation: 19-inch frame
  ◆ Designed accordance to UL and CE standards
  ◆ If main unit turn off power, microphone will shut off the power within 60 seconds

• Technical Parameter



  Item	Parameter
  Transmission Method	Wireless infrared
  Channels	4 audio + 1 data
  Carrier Frequency Band	4MHz-8MHz
  Modulation Method	FM/FSK
  Receiving Sensitivity	-100dBM
  Output Level	0dBV/+6dBV
  Infrared Operating Distance	>10M
  Frenquency Response	100Hz-12KHz
  S/N Ratio	>82dB
  T.H.D.	<0.5%
  Communication Rate	100KBPS
  Power Supply	AC 110V~220V / 50Hz-60Hz
  Consumption Rating	10W
  Operating Temperature Range	0-40 degree
  Dimension (LxWxH)	483x377x89mm
  Net Weight	8Kg




  ---

• H-8700C/D Infrared Conference System Microphone




◆ Portable table moving and microphone pipe can be pull out. Extended pipe option
◆ Electric capacity type microphone, equipped with windshield cover
◆ OLED display microphone ID, signal level, battery level, microphone state, control channel, etc.
◆ Equipped with microphone on/off key and indicator
◆ Equipped with 5 function keys to support microphone ID/LCD contrast/Language setting and service calling function
◆ Microphone will shut off the power in 60 seconds to save battery power if system communication is error
◆ OLED will display "IR Signal Weak/Error" if ther IR signal is weak when microphone working.

Including the functions of the delegate unit, chairman unit has other following functions:
◆ Chairman microphone can turn on any time
◆ In one system microphone just support one chairmann microphone and the ID number should be 1
◆ Priority function: chairman can turn off delegate microphone any time
◆ Chairman only mode: Delegate microphone can not be turned on again after chairman microphone press priority button. The chairman need quit this mode first, and then delegate microphone can be turned on again.

• Technical Parameter



  Item	Parameter
  Transmission Method	Wireless infrared
  Channels	4 audio + 1 data
  Carrier Frequency Band	4MHz-8MHz
  Modulation Method	FM/FSK
  Infrared Radiator Consumption	+10dBM
  Receiving Sensitivity	-100dbM
  Mic Sensitivity	-44dB±2dB
  Frenquency Response	100Hz-12KHz
  S/N Ratio	>82dB
  T.H.D.	<0.5%
  Reference Speaking Distance	10~30cm
  Consumption Rating	8W
  Operating Temperature Range	0-40 degree
  Dimension (LxWxH)	168x145x60cm
  Length of Gooseneck	420mm (optional)
  Net Weight	1.2Kg (with battery)
  Battery	LIP battery 12V/4000MAH



  ---

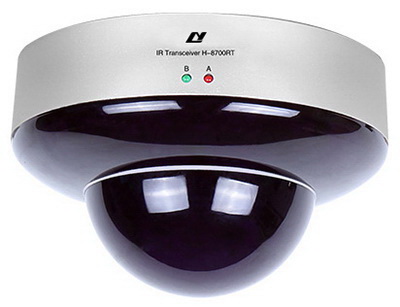

• H-8700RT Infrared Conference System Receiver






  ◆ Adop mounting hook installation, easy to install
  ◆ Wide-angle, receiving range is approximately 150 degrees
  ◆ Signal gain more than 35dBM
  ◆ Adopt low consumption electro circuit

• Technical Parameter


  Item	Parameter
  Carrier Frequency Band	4MHz-8MHz
  Power Supply	DC 24V from main unit
  Rated Current	380mA
  Receiving Sensitivity	-100dBM
  Gain	40dBM
  Output Impedance	50Ω
  Infrared Operating Distance	>12M
  Terminal Type	TNC
  Dimension	Φ145x100mm
  Net Weight	1.71Kg




  ---

• H-8700T Infrared Conference System Distributor


• Technical Parameter



  Item	Parameter
  Carrier Frenquency Band	4MHz-8MHz
  Insertion Loss Computation	<1dbM
  Input/output Impedance	50Ω
  Input Terminal	2
  Output Terminal	4
  Terminal Type	TNC
  Dimension (LxWxH)	80x65x20mm
  Power Supply	DC 24V/2A
  Net Weight	0.67Kg




  ---

• H-8700CG Infrared Conference System Battery Charger




• Technical Parameter



  Item	Parameter
  Power Supply	110V-240V/50Hz-60Hz
  Consumption Rating	200W
  Charge Quantity	10
  Max Charging Current	700mA
  Charging Time	About 8~10 hours
  Charging Status	Red LED flashing-charging, Green LED-full
  Operating Temperature Range	0-40 degree
  Dimension (LxWxH)	620x370x260mm
  Net Weight	10.74Kg (without battery)




  ---


• H-8700B Infrared Conference System LIP Battery







• Technical Parameter



  Item	Parameter
  Rated Voltage	DC12V
  Discharge Current	<500mA
  Charging Current	<700mA
  Time of Speaking	>6 hours
  Time of Standby	>25 hours
  Charging Voltage	DC15V
  Dimension (LxWxH)	130x75x20mm
  Net Weight	0.25Kg




  ---

• H-8700A Infrared Conference System AC Power Adapter


• Technical Parameter



  Item	Parameter
  Imput Voltage	AC110V/220V 50Hz~60Hz
  Output Voltage	DC18V 600mA
  Dimension (LxWxH)	98x70x55mm (only transformer)
  Net Weight	0.75Kg




  ---

• System Connection Diagram

• H-8700.pdf
