M-2189 250 Zones Intelligent Public Address Center, 250 Zone Intelligent PA System

PA Speaker

Description

◆ 10.4" touch screen, or touch pad control
◆ Max 250 zones individual output
◆ 1-48 remote control partition paging channels
◆ Built-in exclusive electroacoustic program sources, background music broadcast is supported with no extra external aduio source devices
◆ Fire control/disastrous alarms, paging, phone calls break in automatically
◆ Module functions such as normal input, priority input, paging input, normal input of partition, monitoring, extend output/input modules can be selected

Specification

Model	M-2189
Screen size	10.4 inches
Control	Touch pad + Touch screen
Work environment	Temperature.：5-35℃；humidity：0.75%；Pressure: 86-106kPa
Power timer capacity	Mono 2A，4 channels total 5A
System audio N/S	LINE: 75dB; MIC: 60dB
System audio distortion	Less than 0.5% @ 1kHz;
System audio input levels	LINE: 250mV; MIC: 3mV
System audio impedances	LINE:10kΩ; MIC: 600Ω
System audio output level	0dBV
Power supply	AC 220-240V/50-60Hz/120W
Outer Packing Size(mm)	(L×W×H)575×545×445mm
Unit Size (mm)	(L×W×H)484×485×305 mm
Gross Weight	37.6kg
Net Weight	23.6kg
Products	1 manual, 1 power supply cord 2 keys and 1 protecting glass
System software	Software pack, licensed

Product Reviews

No Reviews For This Product.

Optional function modules can be selected according to different applications

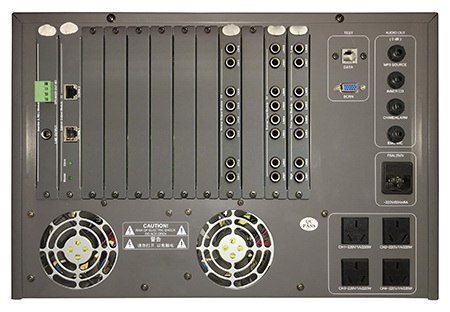

12 function module slots are provided on the back of each smart broadcasting center (host)
