Product detail

Categories » Public Address System » Network PA System » M-9000 Series Simple IP Network PA System

 Checkout
Product ID: M-6604N/M-6606N/M-6608N

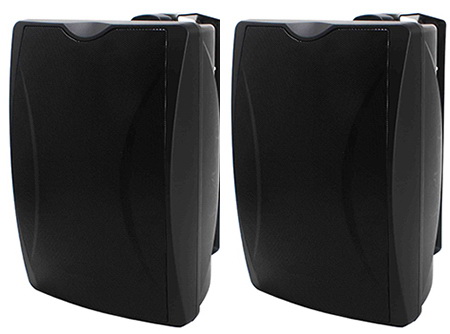

20W/30W/40W IP Network Wall Mounted Speaker
20W/30W/40W IP Network Wall Mounted Speaker
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

  • Description

◆ IP based network audio speakers, up to 200 zones
◆ Build-in 2x20W; 2x30W; 2x40W full range Hi-Fi digital amplifier
◆ 1 AUX input, 1 AUX output
◆ 4G local memory storage support auto running off-network
◆ Support  off line running without IP controller & software free
◆ Support weekly timing ,remote paging, point  to point control and group control
◆ 1 set contains 1 main speaker (20W/30W/40W) + 1 sub-speaker (20W/30W/40W)

  • Technical parameter

Item Description Parameter
M-6604N M-6606N M-6608N
Aacoustics Speaker driver 4"x1, 1"x1 5"x1, 1"x1 6.5"x1, 1"x1
Sensitivity (1m, 1W) 90±2dB
MAX sound level (1m) 103±2dB 105±2dB 105±2dB
Frequency response 95-20KHz 80-20KHz 80-20KHz
Build-in amplifier Rated power 2*20W (8Ω) 2*30W (8Ω) 2*40W (8Ω)
Frequency response 20-20KHz
S/N ratio ≥81dB
Distortion ≤0.1%
Separation >60dB >50dB >50dB
Line input Input impedance >10KΩ
Sensitivity 1V
Network Standard RJ45 10/100M self adaptation
Audio Format support MP3, WMA, WAV, ACC, OGG APE, FLAC etc.
Other Power supply AC100-240V 50Hz/60Hz 1A
Working temperature 0ºC-55ºC
Product size (LxWxH mm) 176×170×255 310x215x203
Packing size (LxWxH mm) 560×246×315
Net weight (Kg) 2.8x2 3.0x2 4.6x2
  • Connection drawing


Product Reviews

No Reviews For This Product.

Click to review this product

Simple IP Network Public Address System Control Center
Product ID: M-9100

  • Zones can be displayed automatically without pre-setting or reboot
  • Support BGM, emergency paging, and siren alarm from the host machine
  • 1 AUX audio input, 1 AUX audio output, 1 Mic input, 1 EMC emergency output 1 way short-cut output
  • All zones on/off, volume control and other operations are avaiable from any zone of the LAN
