Product detail

Categories » PA Amplifier » Mixer Amplifier » Multi Zone Mixer Amplifier

 Checkout

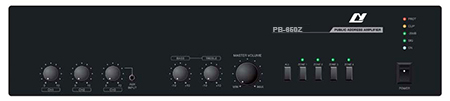

Product ID: PB-480Z/PB-650Z
4 Zone Digital Mixer Amplifier with Remote Paging
4 Zone Digital Mixer Amplifier with Remote Paging
  • Description
  • Picture
  • Datasheet
  • Reviews

  • Description:

◆ 3 MIC input, MIC1 with muting function
◆ 2 RCA line input, 1 6.3mm AUX input
◆ 3 Input channel volume individual control & tone control
◆ Master, basee and treble volume control
◆ 4 Zone speaker 100V output
◆ RJ45 jack for zone selectable remote mic (EM-4)
◆ LED selector and indicators
◆ Short circuit protection & alarm

  • Specification:

 Model  PB-480Z  PB-650Z
 Rated output power (RMS)  480W  650W
 Input Sensitivity/Impedance  MIC 1,2,3: -50dB / 20KΩ (balanced)
 Line 2,3: 0dB / 20KΩ (unbalanced)
 Output leve / Impedance  100V (21Ω)  100V (16Ω)
 Frequencey response  80Hz-18KHz (-3dB)
 T.H.D.  <0.1% at 1KHz, 1/3 rated output power
 S/N ratio  >81dB
 Tone control  100Hz, 10KHz, ±10dB
 Protection  AC fuse, DC voltage, Overload, Short circuit
 Muting function  MIC1 overrides other input signals at 0~30dB
 Power supply  AC220~230V/50~60Hz
 Product dimension (WxDxH)  420x320x88mm
 Net Weight  5.5Kg  5.7Kg

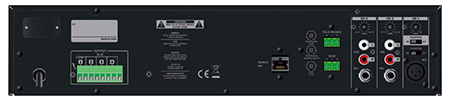

rear view
