Product ID: L-VCM6A/EN

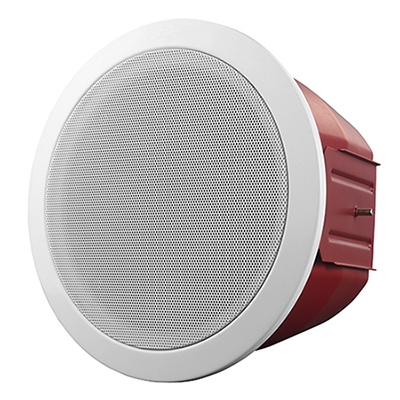

Honeywell 6.5" Fireproof Metal Ceiling Speaker EN54-24
Honeywell 6.5" Fireproof Metal Ceiling Speaker EN54-24
  • Description
  • Picture
  • Datasheet
  • Reviews

  • Description

    ◆ Comply with EN54-24 requirements
    ◆ With fire dome to protect wire connection
    ◆ Fireproof plastic wire joint and ceramic terminal
    ◆ High-class steel and form by stamping
    ◆ Aluminum grille, stainless and durable
    ◆ Clip type flush mount design for easy installation
    ◆ Equipped with steel hanging line, double ensure

  • Specifications

 Model  L-VCM6A/EN (LSC-606)
 Rated/Max power:  6W/9W
 Power taps: 100V  6/3/1.5/0.75W
70V  3/1.5/0.75/0.375W
 Line input voltage:  100V/70V
 Rated impedance:  1.7kΩ/3.3kΩ/6.7kΩ/13kΩ
 Sensitivity at rated power /1W: 100 Hz-10k Hz, 1m  99dB/91d
100 Hz-10k Hz, 4m  87dB/79dB
 Frequency response (-10dB):  170-20KHz
 Dispersion angle (1kHz/-6dB):  170°
 Connection:  Ceramic Terminal
 Dimension (mm):  Φ222x129
 Hole for mounting (mm):  Φ196
 Speaker driver unit:  full range 6.5"
 Material:  Iron
 Grill color:  White (RAL 9003)
 Dome color:  Red (RAL 3000)
 Weight (Kg):  1.57
