Categories » Public Address System » Economical PA System

 Checkout
Product ID: PB-9810P
10 Channel Paging Selector
10 Channel Paging Selector
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

  •  Description

    ◆ 10 channels paging select
    ◆ 10 channels alarm input & active output
    ◆ 2 Mic & 2 Line input
    ◆ Chime & Mute function
    ◆ Remote–control available, can work with PB-9810R (remote paging microphone)

  • Specification

    Input Mic 1, 2: 600Ω, 2.5mV, unbalanced
    Line 1, 2: 10KΩ, 250mV, unbalanced
    Audio output 0dBV
    Frenquency response Mic: 100Hz-15kHz (±3dB); Line: 20Hz-18kHz(±3dB)
    S/N ratio Mic input : 80dB
    Line input : 90dB
    ALM Activation Level 0V or +12 to 24V preset available
    Protection AC fuse
    Operating power supply AC 220-240V/50-60Hz
    Outer packing size(mm) (L×W×H) 530×440×195
    Product size(mm) (L×W×H) 484×365×88
    Gross weight 8.8Kg
    Net weight 7.0Kg

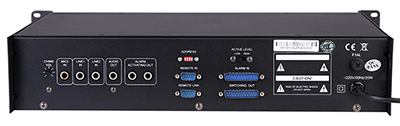

back view


Product Reviews

No Reviews For This Product.

Click to review this product

Remote Paging Microphone (for M-2120/M-2140 and PB-98 series PA system)
Product ID: PB-9810R

  • Can work with up to 10 sets of PB-9810P at remote distance (less than 1 km far)
  • 1 MIC and 1 LINE input
