Product ID: ED-120/ED-240/ED-360/ED-480L/ED-600L

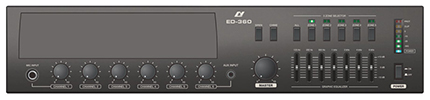

5 Zone Digital Mixer Amplifier with Remote Paging
5 Zone Digital Mixer Amplifier with Remote Paging
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

  • Description:

◆ Rated output power: 120W/240W/360W/480W/600W
◆ 6 MIC input (3 XLR), 3 AUX input, MIC1 with priority muting function, input individual volume control, treble & bass & master volume control
◆ 5 zone 100V speaker output, 1 zone 4Ω speaker out (ED-120/ED-240/ED-360)
◆ 2 line amplifier input, 2 line amplifier out
◆ With remote paging MIC input (RJ45 interface)
◆ Telephone paging function (Euro block)
◆ Music on hold fuction (Euro block)
◆ Siren & Chime function
◆ LED indicators: Power, SIG, -20dB, -10dB, 0dB, CLIP & protect, zone selector

  • Specification:

 Model  ED-120  ED-240  ED-360 ED-480L ED-600L
 Rated output power  120W  240W  360W 480W 600W
 Output / Impedance  100V(83Ω),
 70V(42Ω),
 25V(5.2Ω),
 22V(4Ω)
 100V(42Ω),
 70V(21Ω),
 25V(2.6Ω),
 31V(4Ω)
 100V(28Ω),
 70V(13.6Ω),
 25V(1.7Ω),
 38V(4Ω)
100V
(20.8Ω)
100V
(16.7V)
 Input sensitivity  Channel 1-3, MIC: -54dB to -6dB Variable /  20KΩ balanced
 Channel 4-6, Line: -34dB to +14dB Variable /  20KΩ balanced
 Remote paging, MIC: 0dB / 20KΩ balanced
 Tel-paging: -17dB / 600Ω balanced
 Amp/line in: 0dB/10KΩ unbalanced
 Frequencey response  80Hz-18KHz
 T.H.D.  <0.1%
 S/N ratio  >80dB
 Grapic source (±12dB)  125Hz, 250Hz, 500Hz, 1KHz, 2KHz, 4KHz, 8KHz
 Power supply  AC230V, 50/60Hz
 Protection  Overheat, overload
 Net weight  6.3Kg  7.3Kg  8.3Kg 5.5Kg 5.5Kg
 Product dimension (WxDxH)  420x320x88mm

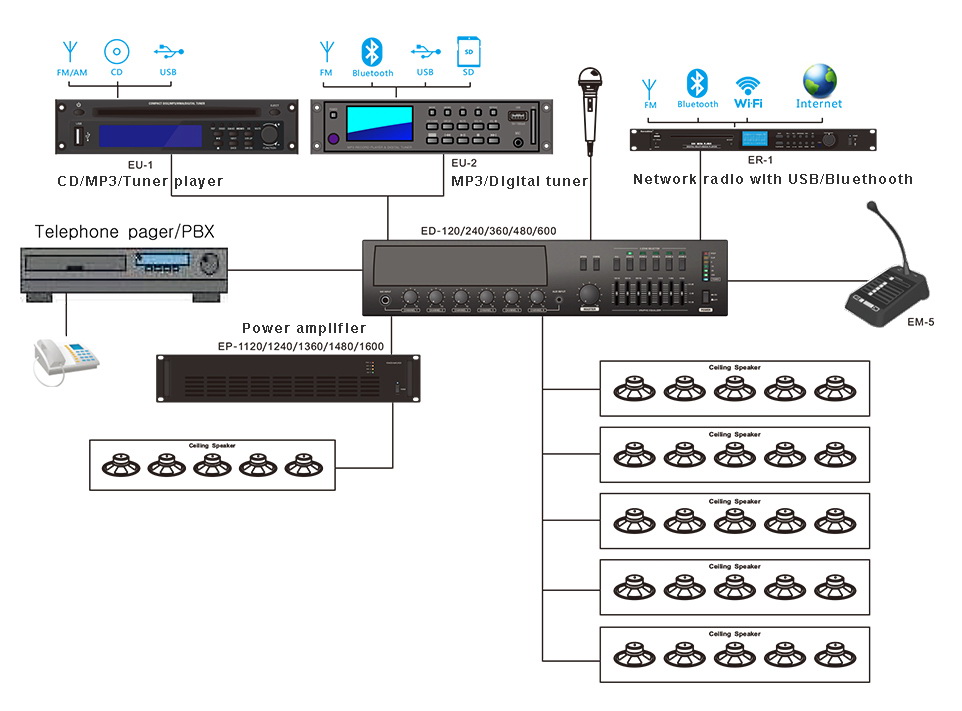

  • System connection:
system connection drawing

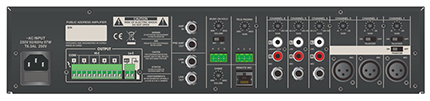

back view
