• H-6800M Digital Conference System Main Unit

  ◆ Designed accordance to ISO and IEC914 standards
  ◆ Power consumption of main unit 450W, each unit can support 50 units meeting microphone (1 chairman microphone & 49 delegate microphone)
  ◆ Combing video and audio signal in one cable
  ◆ This system can work with computer or without computer
  ◆ Main unit and microphone can display videos from camera or external video devices
  ◆ Main unit has following features:
       1) Manage the meeting with software, support double screen display
       2) Voting function (yes,no abstain)
       3) Electing function (single-ballot and multiple-ballot)
       4) Mode score: audience response (100, 75, 50, 25, 0)
       5) Video camera auto-track function
       6) Chairman can set following discuss work mode: free mode, FIFO mode(1-9 microphone unit), Limit mode (1-9 microphone unit),etc.
  ◆ TFT LCD display panel with touch control function, touch screen on main unit and microphone
  ◆ Equipped with 2 group video input interface
  ◆ Five groups of terminal interconnection interface for microphone connection
  ◆ Build-in RS-232 interface for PC connection
  ◆ Build-in video processor, support video camera auto-track function
  ◆ Build-in speaker on main unit and microphone
  ◆ Connection ports:
       - 1 aux input ( RCA)
       - 1 line output(RCA )
       - 1 rec output (RCA )
       - 1 master output ( XLR )
       - 2 DVD video inputs ( RCA )
       - 8 cameras ( or domes ) inputs ( RCA )
       - 2 auto-tracking cameras control
       - 2 video output ( BNC )
       - 5 mic connectors
       - 1 computer control connector ( RS-232 )

• Technical Parameter



  Item	Parameter
  Power Supply	AC110V/240V 50Hz/60Hz
  Consumption Rating	400W
  T.H.D.	<0.05%
  S/N	>75dB
  Frequency Response	100Hz-18KHz
  Color	Black
  Net Weight	10.3Kg
  Audio Input	RCAx1
  Audio Output	RCAx2, XLRx1
  Display	4.3 inch 24 bit TFT LCD touch screen
  Output Impedance	47KΩ
  Video Input	BNCx4 RCAx2 75Ω
  Video Output	BNCx1
  Control Type	RS-232
  System Connection	8-PIN DINx5
  Dimension	488x324x84mm
  Installation	19 inch frame

  ---

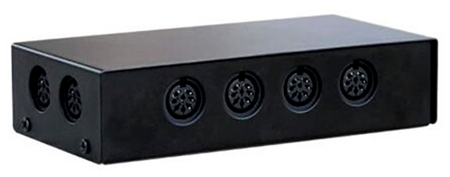

• Cable Distribution Case H-D9100




  This case has totally 11 pieces 8P-DIN connection interface, with this case the system can reduce the video signal attenuation, make sure the video image clear.
  Each case support 10 piece microphones.

  ---

• System Connection Diagram

Achieve voting and video camera atuo-track function without adding other equipments
